2013-2018 Ram Rear View Mirror Backup Camera Image Reroute Kit
Price range: $33.25 through $109.90
Description
Another exclusive Infotainment.com product! Would you like to split and reroute the camera image from your Ram truck’s rear view mirror to your newly installed radio display? Look no further. This easy to install kit makes the process simple!
Product Installation
Follow the basic installation video featured below. A more professional in-depth video will be shot in the coming weeks.
- Remove the passenger-side dash access panel

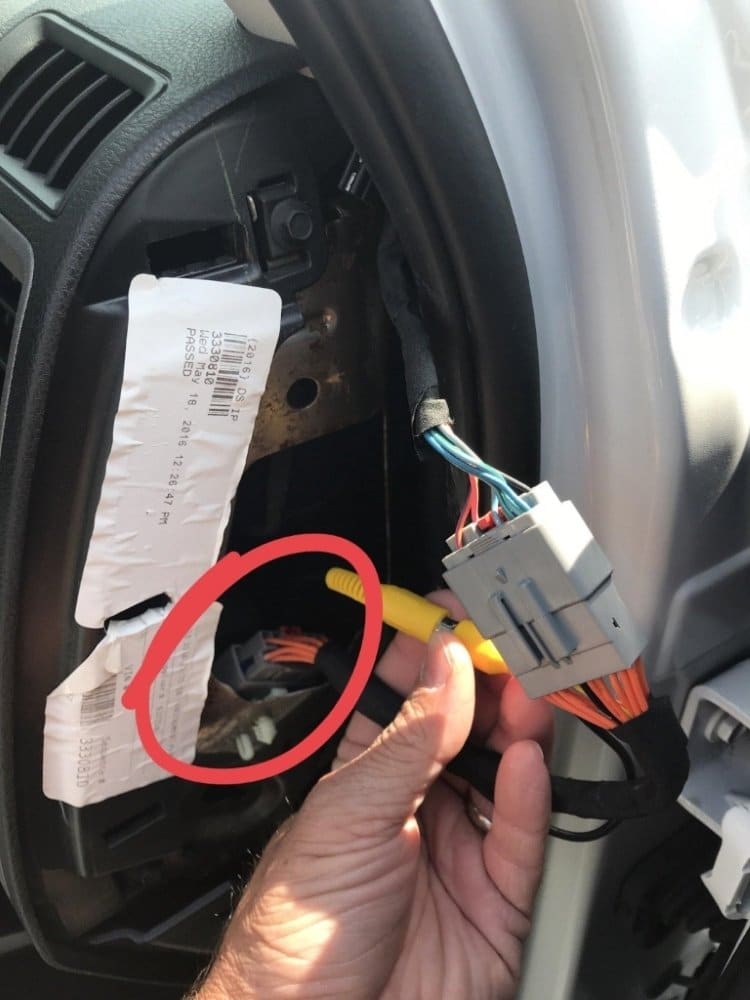

- Disconnect the 14-pin rear view mirror loom connector and plug it into the C-INTCAMRR female port
- Plug the male C-INTCAMRR connector into the same location as the factory rear view mirror loom connector
- Route the RCA cable behind the glovebox to behind the touchscreen radio
- Remove the radio and plug the factory radio connector into the C-INTC4T rear camera female port (remove heat shrink wrapping)
- Plug the male C-INTC4T into the rear of the touchscreen radio
- Plug the previously ran RCA cable into the yellow C-INTC4T RCA input
Product Features
Compatible with the following vehicles:
2013-2018Â Ram 1500, 2500HD, 3500HD, 4500HD, 5500HD
2019-2022 Ram 1500 “Classic” Body-Style – Now Compatible!
Things To Know
- This kit will work with factory and aftermarket touchscreen radios. If installing an aftermarket radio the C-INTC4T will not be required as most aftermarket radios have a dedicated rear camera RCA input.

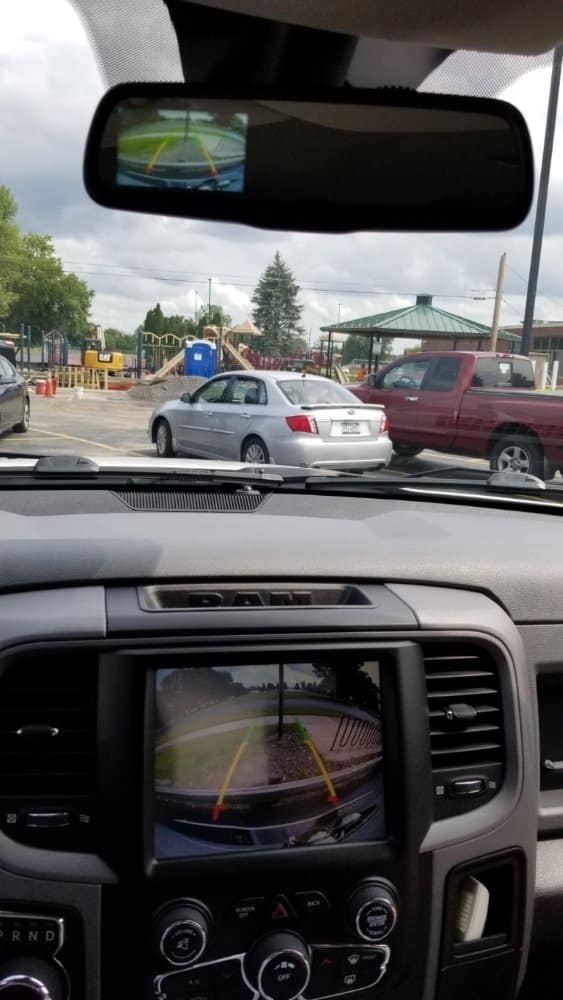

- Per multiple requests, we designed the kit to retain the backup camera image on BOTH the rear view mirror and the newly installed radio display.
- 2013-2015 Ram truck owners with the factory installed CHMSL cargo camera can use this kit to reroute the backup camera image from the rear view mirror to the radio display. However, the 8.4-inch radio will require the 17.11.07 software or will need to be replaced with a MY16 or MY17 8.4-inch radio. Furthermore, you will need to plug the male yellow RCA into the female blue RCA on the C-INTC4T harness. Run this kit’s RCA into the female yellow RCA on the C-INTC4T harness. This procedure will allow the driver to have the backup camera image on the 8.4-inch radio and the rear view mirror. The cargo camera can be enabled manually by pressing the “cab cam” soft key while in reverse.
Vehicle Compatibility
| Car Make & Model | Car Year |
|---|---|
| Dodge Ram 1500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 2500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 3500 | 2013 2014 2015 2016 2017 2018 |
| RAM 1500 | 2013 2014 2015 2016 2017 2018 |
| RAM 2500 | 2013 2014 2015 2016 2017 2018 |
| RAM 3500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 1500 Classic | 2019 2020 2021 2022 |
| RAM 1500 Classic | 2019 2020 2021 2022 |
Shipping & Delivery
Infotainment.com Shipping Policy:
- Infotainment.com uses the US Postal Service, UPS, and FedEx as package carriers
- Orders are shipped Monday – Friday (excluding holidays)
- Infotainment.com fulfills orders from 5 different locations in North America. Individual items within the order may ship from different locations with different tracking numbers
- Shipments are not able to be re-directed by the customer after being sent
- Next Day or Overnight shipping may be available on a case-by-case basis depending on the product and the technician labor that may be required.Not all expedited shipping methods are available to all locations.
- All orders will be assigned a tracking number. You will be emailed the tracking number once the shipping label is created. This can be tracked via the link in the email or directly on the carriers website.
Â
Domestic Shipping:
Canada & International Shipping:
Lost / Missing / Stolen Shipments
General:
- Verify the shipping address used within checkout to ensure it is correct
- Look for a notice of attempted delivery
- Look around the delivery location for your package. Many times carriers will place the package in a location that isn’t typical, ie. behind the fence, by the garage, near the mailbox, etc.Â
- See if someone else accepted the delivery such as a family member or neighbor. In recent past, customers have found the package mixed with other family member’s packages inside their home several days after delivery.
For missing UPS/FedEx shipped packages:
- A UPS1-800-742-5877Â or FedEx1-800-463-3339Â trace investigation must be initiated as soon as possible. This process takes up to 8 business days to be completed.
For missing USPS packages:
- A US Postal Service 1-800-222-1811Â trace investigation must be initiated as soon as possible. Many times USPS will suggest that it will take an extra 7 business days after the expected date of delivery to locate the package.
For missing packages that have been shipped to an APO/FPO:
- Please note that the Military Postal Service Agency does not consider a package to be lost until 60 days after the date of mailing. If the customer still has not received their package after 60 days then please contact customer service to assist you in filing a missing package inquiry with the MPSA. Once the inquiry is received, the MPSA will be in contact to positively identify the owner and ship the item to the recipient should it be found.
Â
In the event a lost or missing package is not recovered within 14-days (domestic shipments) or 30-days (international shipments) a police report may be required at the discretion of the customer support manager. All part numbers and/or serial numbers are recorded prior to shipping, this vital information will assist the police with the investigation. Depending solely on the circumstances, the customer support manager may opt to release another identical shipment requiring a direct signature of the original buyer.
Â
Description
Another exclusive Infotainment.com product! Would you like to split and reroute the camera image from your Ram truck’s rear view mirror to your newly installed radio display? Look no further. This easy to install kit makes the process simple!
Product Installation
Follow the basic installation video featured below. A more professional in-depth video will be shot in the coming weeks.
- Remove the passenger-side dash access panel
- Disconnect the 14-pin rear view mirror loom connector and plug it into the C-INTCAMRR female port
- Plug the male C-INTCAMRR connector into the same location as the factory rear view mirror loom connector
- Route the RCA cable behind the glovebox to behind the touchscreen radio
- Remove the radio and plug the factory radio connector into the C-INTC4T rear camera female port (remove heat shrink wrapping)
- Plug the male C-INTC4T into the rear of the touchscreen radio
- Plug the previously ran RCA cable into the yellow C-INTC4T RCA input
Product Features
Compatible with the following vehicles:
2013-2018Â Ram 1500, 2500HD, 3500HD, 4500HD, 5500HD
2019-2022 Ram 1500 “Classic” Body-Style – Now Compatible!
Things To Know
- This kit will work with factory and aftermarket touchscreen radios. If installing an aftermarket radio the C-INTC4T will not be required as most aftermarket radios have a dedicated rear camera RCA input.
- Per multiple requests, we designed the kit to retain the backup camera image on BOTH the rear view mirror and the newly installed radio display.
- 2013-2015 Ram truck owners with the factory installed CHMSL cargo camera can use this kit to reroute the backup camera image from the rear view mirror to the radio display. However, the 8.4-inch radio will require the 17.11.07 software or will need to be replaced with a MY16 or MY17 8.4-inch radio. Furthermore, you will need to plug the male yellow RCA into the female blue RCA on the C-INTC4T harness. Run this kit’s RCA into the female yellow RCA on the C-INTC4T harness. This procedure will allow the driver to have the backup camera image on the 8.4-inch radio and the rear view mirror. The cargo camera can be enabled manually by pressing the “cab cam” soft key while in reverse.
Vehicle Compatibility
| Car Make & Model | Car Year |
|---|---|
| Dodge Ram 1500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 2500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 3500 | 2013 2014 2015 2016 2017 2018 |
| RAM 1500 | 2013 2014 2015 2016 2017 2018 |
| RAM 2500 | 2013 2014 2015 2016 2017 2018 |
| RAM 3500 | 2013 2014 2015 2016 2017 2018 |
| Dodge Ram 1500 Classic | 2019 2020 2021 2022 |
| RAM 1500 Classic | 2019 2020 2021 2022 |
