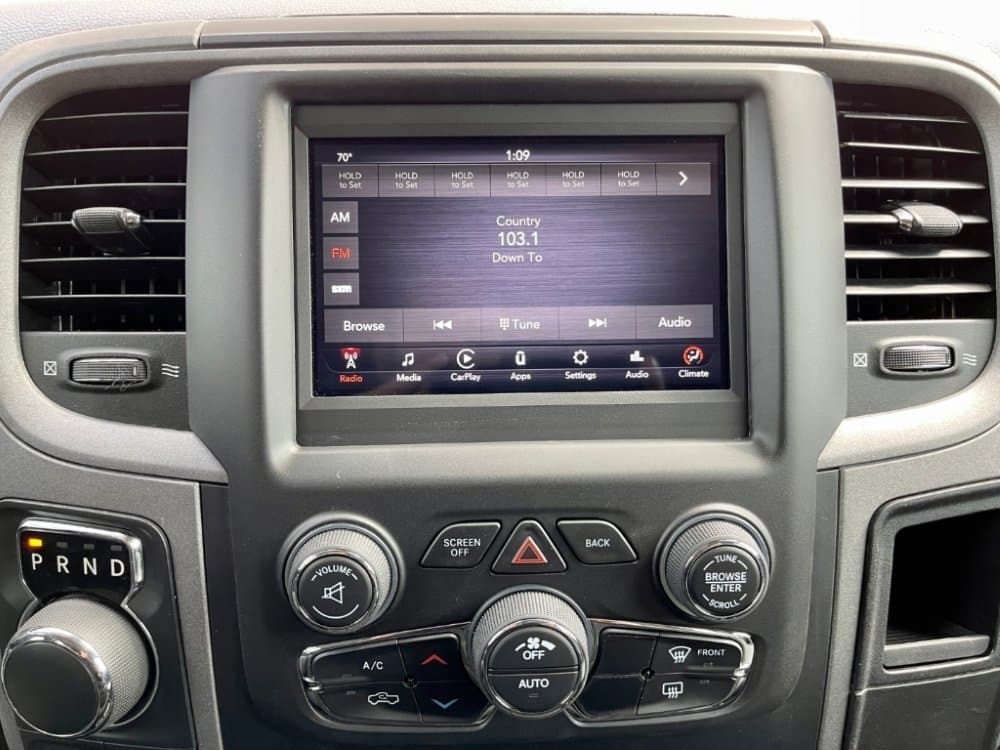

2014-2018 Ram 1500 UConnect 4 UAG 7-inch Display with Apple CarPlay® / Android Auto®
Price range: $1,199.95 through $1,799.95
Description
- Our reconditioned factory OEM radios feature a 90-day guarantee and a hassle-free return policy. Extended warranties are also available!

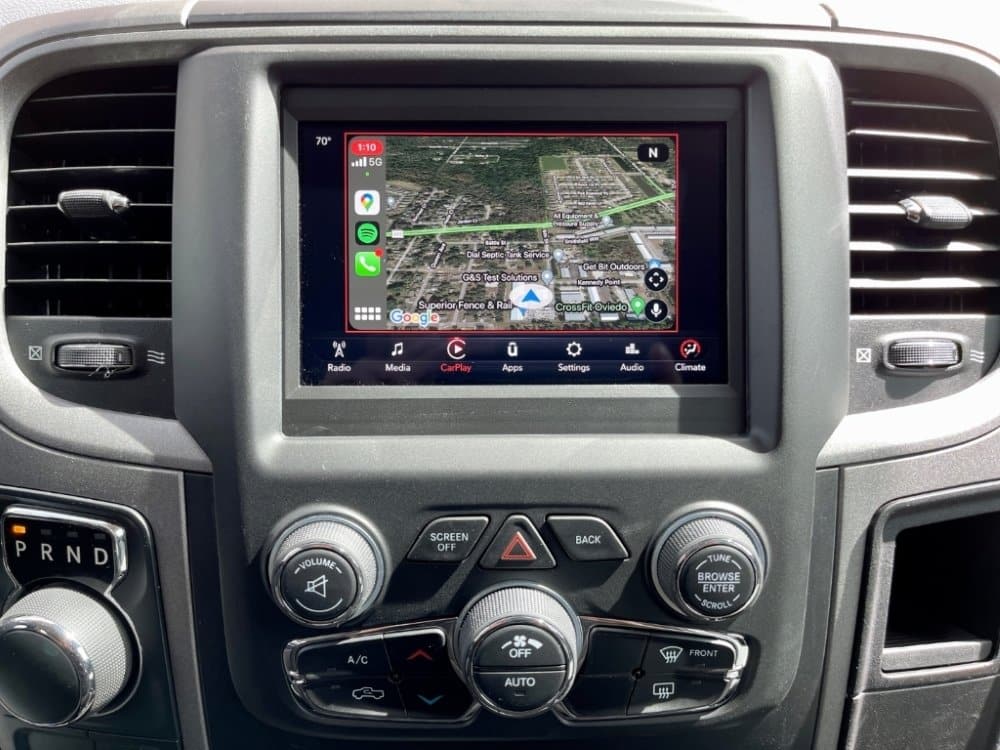

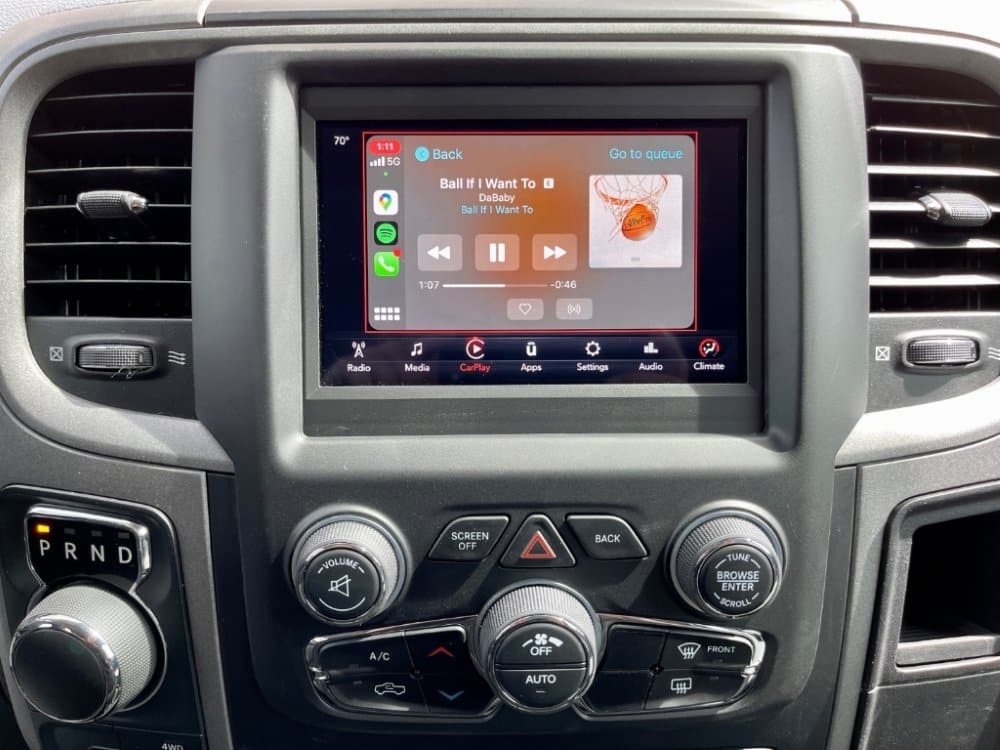

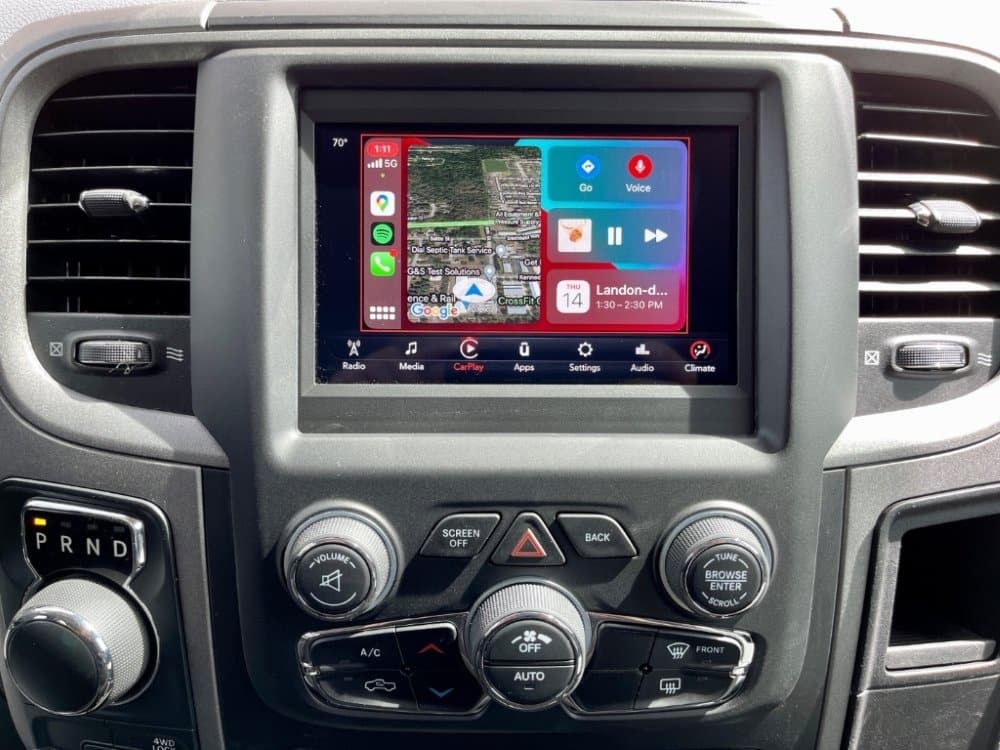

- Full Apple CarPlay® and Android Auto® support
- Supports English, French, & Spanish languages
- No-hassle, Plug & Play system. Pre-programmed to your specific vehicle. Please notate your vehicle’s 17-digit VIN after adding to your cart. Eligible for our Compatibility Guarantee.
Product Installation
Installation of this product would be rated a 3 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

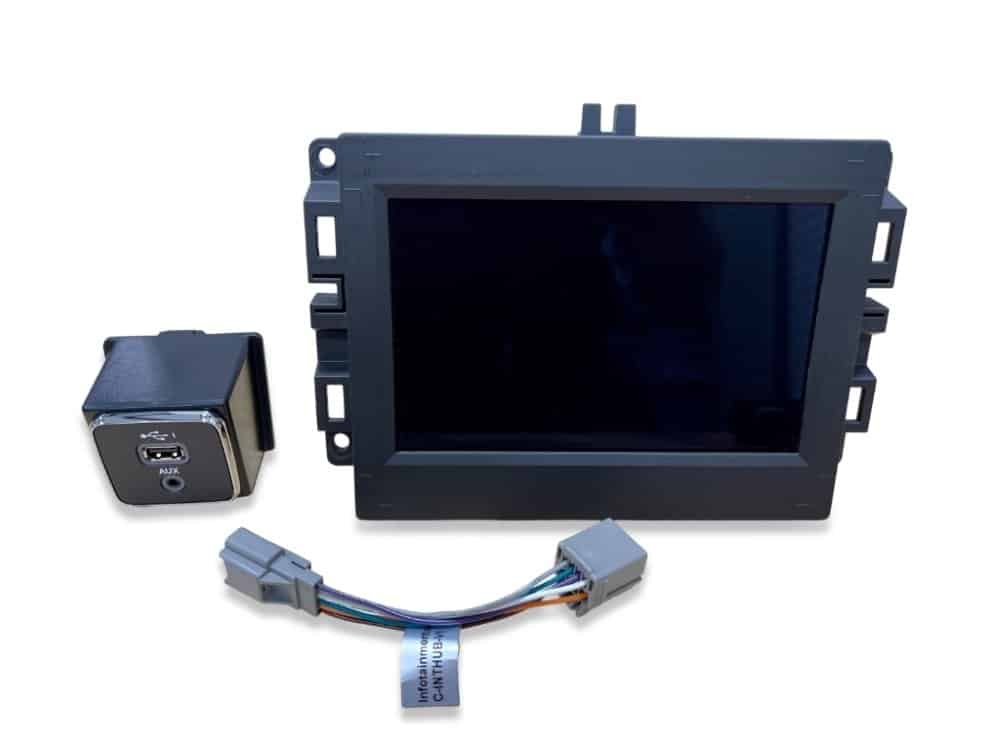

Type 1 – In this scenario you have a factory installed 8.4-inch (RA3) or 8.4-inch (RA4) radio in your truck. (See installation video below.)
- Remove the instrument panel that surrounds your factory radio.
- Remove your factory installed 8.4-inch radio and install the included pre-programmed 7-inch UAG radio.
- Reassemble the instrument panel to the dash.

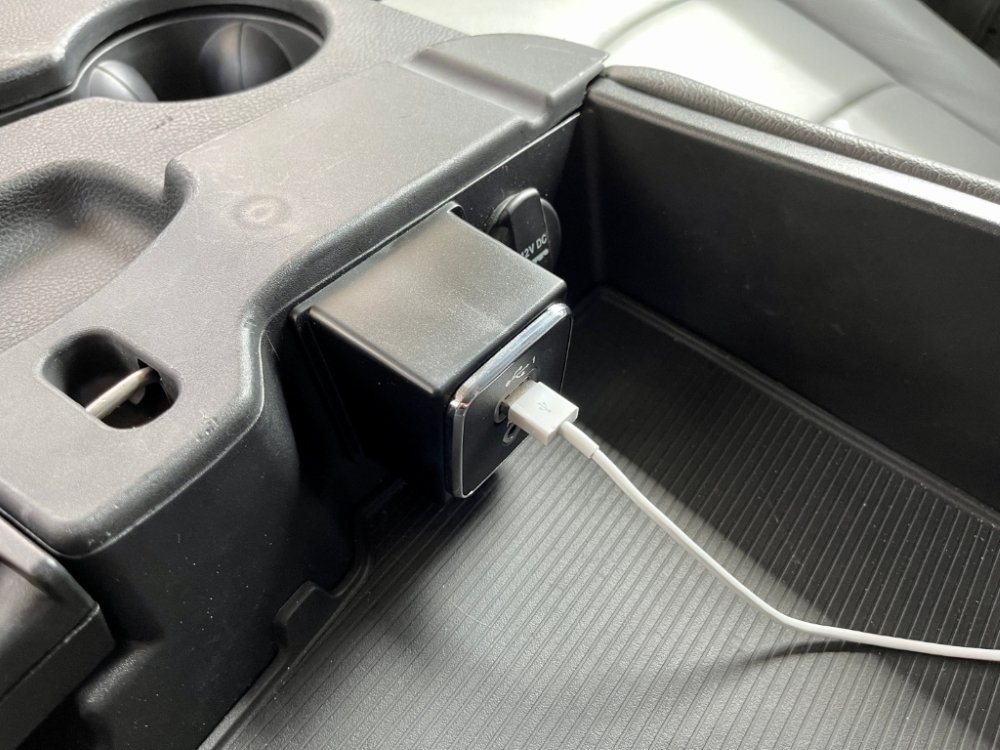

- Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.

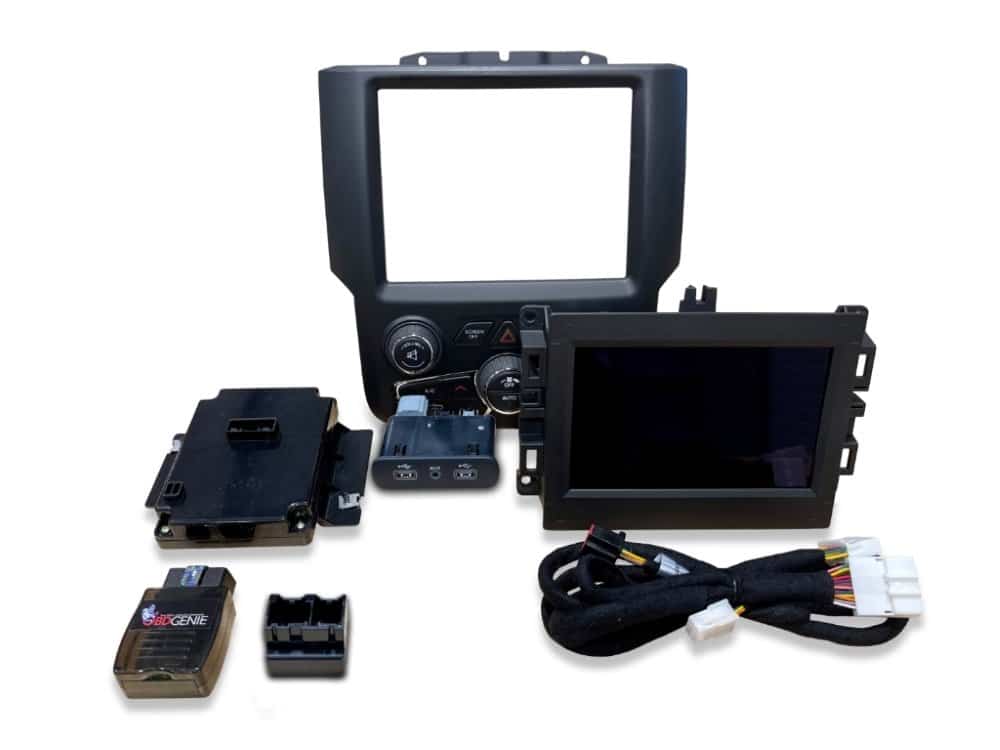

Type 2 – In this scenario you have a factory installed base-model 3-inch (RA1) or 5-inch (RA2) radio in your truck. (See installation video below.)
- Remove the instrument panel that surrounds your factory radio.
- Remove your factory installed base-model radio and install the included pre-programmed 7-inch UAG radio.

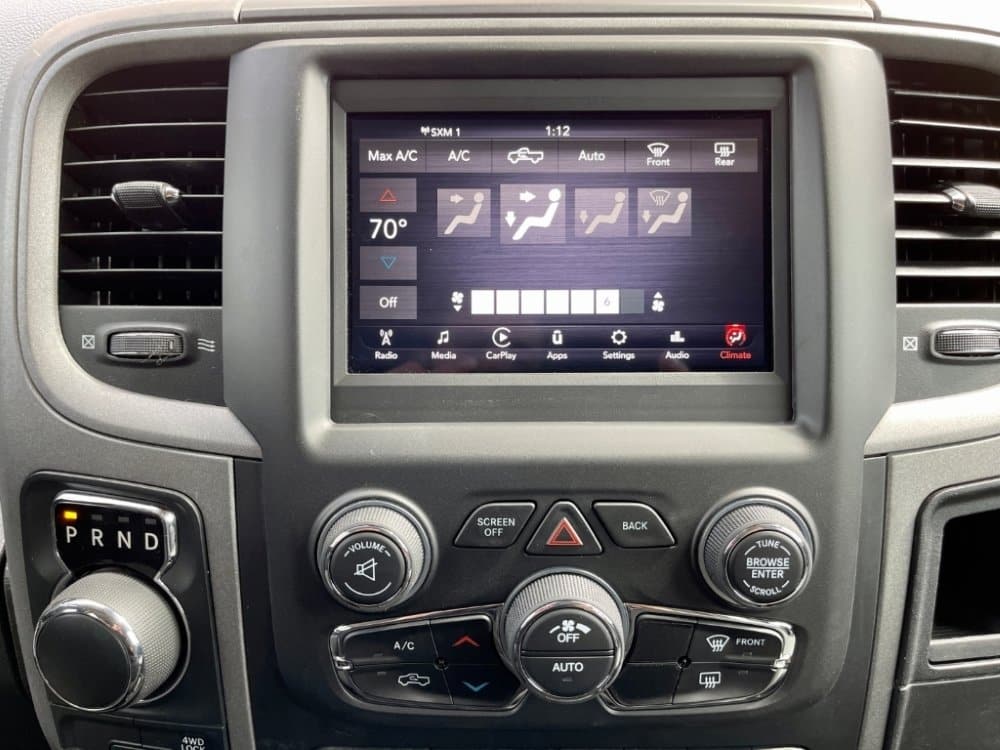

- Install the HVAC module to the pre-determined location on the right side of the dash. Route the wiring to the climate control cavity.
- Remove and replace the factory radio bezel that is attached to the instrument panel. Plug the HVAC module wiring into the new bezel.
- Reassemble the instrument panel to the dash.
- Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.
- Turn the vehicle to the “ON” position and insert the OBD Genie programmer into the OBD port located under the steering column. When the light illuminates green remove the programmer and stow it away. *If the vehicle is a 2018 or newer, temporarily install the included security gateway module bypass behind the radio cavity prior to using the OBD Genie programmer*
Type 1 Installation:
Type 2 Installation:
Things To Know
- If your truck is a 2014 and currently features heated seats, ventilated seats, and/or heated steering wheel you will need an extra module to retain those features. See our 4C Retrofit Interface.
- Ram Trucks currently equipped with steering wheel mounted audio controls and/or voice recognition & phone buttons will need to use the buttons located on the radio display and instrument panel bezel when upgrading to the UAG Infotainment system.
- Customers who are currently subscribed to the paid subscription of UConnect Access® will forfeit this feature by upgrading to the new UConnect 4 system.
- Pre-programmed to function with your vehicle’s existing back-up rear view camera. If you would like to add a rear view back-up camera check out most popular plug & play TailGate Handle Backup Camera Kit.
- Pre-programmed to function with your vehicle’s existing roof-mounted Sirius® satellite radio antenna. If you do not currently use or will ever need SiriusXM be sure to select “SiriusXM is Not Needed” above.
- Pre-programmed to function with your vehicle’s existing UConnect® bluetooth hands-free calling feature. If you would like to add this incredible safety feature check out our plug & play UConnect Microphone Kit.
- This upgrade is designed for trucks with our without existing automatic climate controls. If you would like to add this convenient feature install our plug & play Auto Climate Control Kit.
Vehicle Compatibility
| Car Make & Model | Car Year |
|---|---|
| - 2019 OEM Dodge Ram 1500 2500 3500 Truck Radios | 2011 |
| Dodge Ram 1500 | 2014 2015 2016 2017 2018 |
| RAM 1500 | 2014 2015 2016 2017 2018 |
| Dodge Ram 1500 Classic | 2019 2020 2021 2022 |
| RAM 1500 Classic | 2019 2020 2021 2022 |
